Body Trolley

I am due to pick up my body, and the first set of bits, this Friday so I needed somewhere to put the body..... and clear the garage then I'm ready to begin.

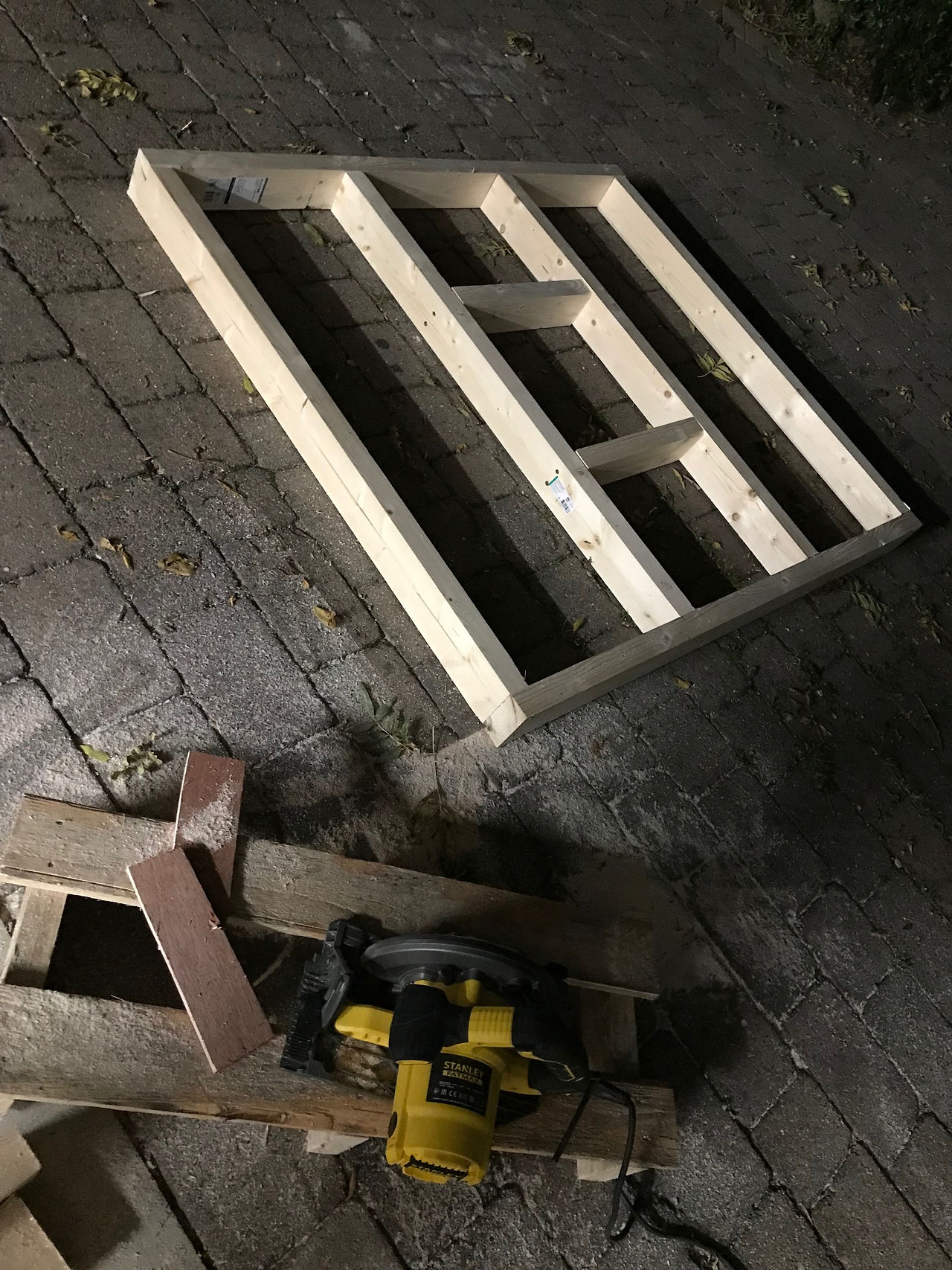

The construction is based on Dale Cordingley's 'Bodywork Frame' and Steve`s trolley however its slightly different.

I will put some rubber cover on the top to protect the body.

Specification:

• Height: 45cm to the deck.

• Width: 120cm wide

• Length: 135cm long

Component Listing and Dimensions:

1 @ 10 mm ply 1370 x 1220 for top

4 @ 10 mm ply 230 x 230 for corner brackets

2 @ 1350 x 100 x 50 softwood top cross member

2 @ 1350 x 125 x 50 softwood bottom cross member

2 @ 1200 x 100 x 70 softwood bottom cross member

4 @ 1130 x 100 x 50 softwood for centre cross members and side cross members

4 @ castors model 240mm high, 215kg each load, from one-stop-castor-shop on eBay

100 @ 40 mm No 10 screws

40 @ 80mm No 10 screws

16 @ 50mm x 8mm coach screws
